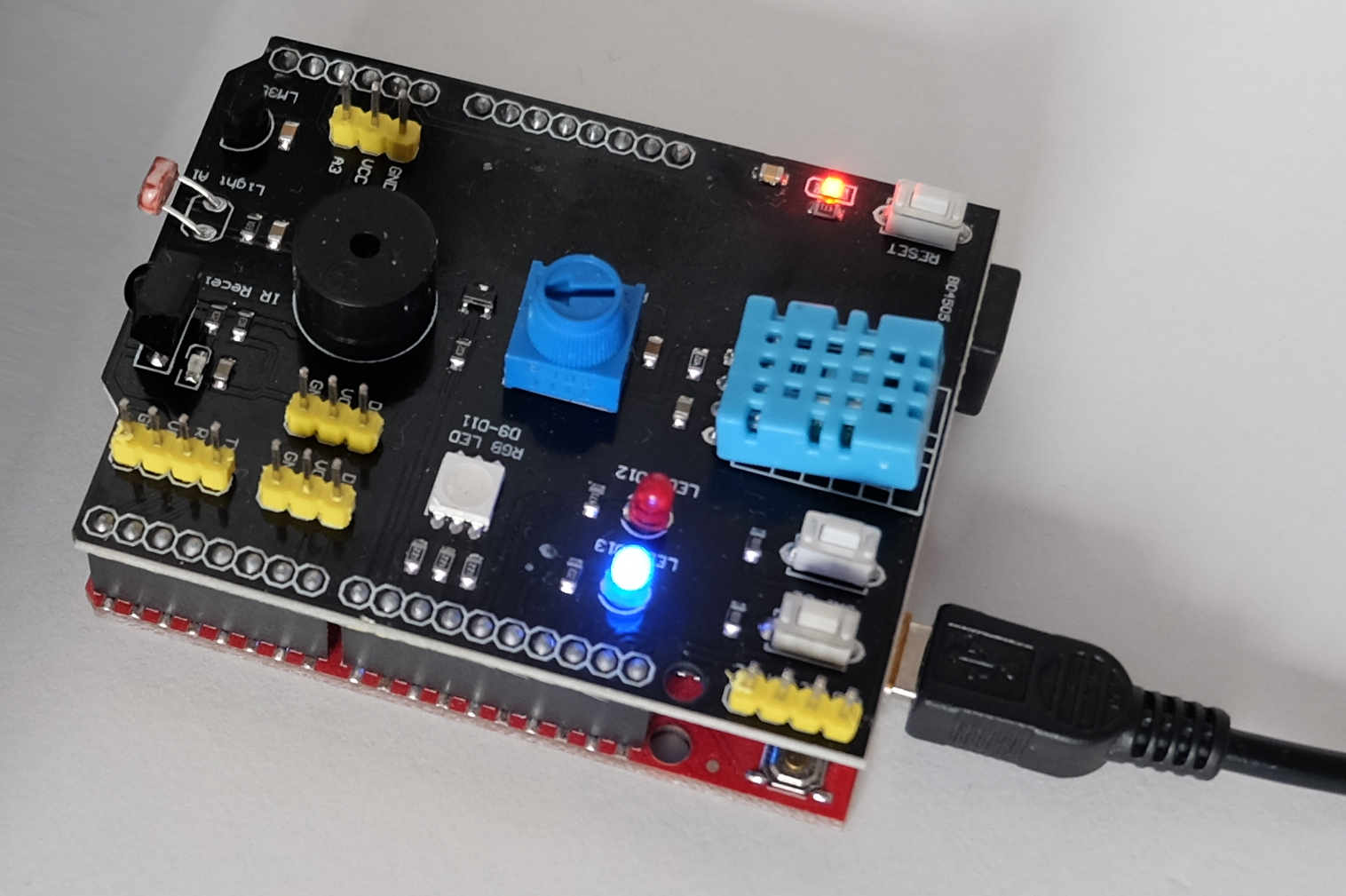

9-in-1 Sensor Shield
The 9-in-1 Sensor Shield is a multifunctional module designed for easy interfacing with various sensors. It enables rapid prototyping by providing a streamlined interface for multiple input and output devices. Key features include temperature, humidity, light, sound, and motion sensors, among others. Ideal for Arduino-based DIY projects and education.
Pinning
| Inputs & outputs | Arduino pin # | Remarks |
|---|---|---|
| LED 1 (blue) | Digital pin 12 | |
| LED 2 (red) | Digital pin 13 | |
| Switch 1 | Digital pin 2 | |
| Switch 2 | Digital pin 3 | |
| DHT11 | Digital pin 4 | Temperature & humidity sensor (not implemented for Arduino and AVR8 platforms) |
| Buzzer | Digital pin 5 | |
| Infrared receiver | Digital pin 6 | |
| RGB LED | Digital pins 9-11 | red D9, blue D10, green D11 |
| Potentiometer | Analog pin 0 | |
| LDR | Analog pin 1 | Light dependent resistor |
| LM35 | Analog pin 2 | Temperature sensor |
